2ch Parallel Flash Chramatography Purif™-aios

Summary

Prif™-aios is all-in-one 2ch parallel flash chromatography system including multi channel UV detector and automatic solvent switching unit.

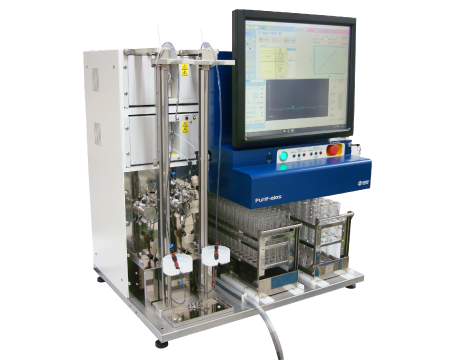

Photo 2ch Parallel Flash Chramatography Purif™-aios

Feature

New design double plunger precise pump

  • It enables 1% gradient flow with high precision.

Automatic solvent switching unit

  • 3 kind of solvents can be used as eluents for A and B solution.(This unit switchs solvents automatically up to 9 patterns)

Multi channel UV detector

  • You can choose arbitrary 2 wavelengths between 200nm and 400nm for detection.

2 channel column stand, Individual 2 kind of columns acceptable

  • It accepts all kind of frash chromatography columns from small to large size.

2 channel fraction collector, Individual 2 experiments acceptable

  • It enable long time preparation (Maximum 4 hours).
  • Equipped an automatic recognition sensor for a test tube rack.

Easy operation to set preparative conditions from simple to complicated.

  • Fast operation by the high spec PC and the letest software.
  • Only 3 clicks to start running.

Specification

Equipment configurations

Equipment configurations
Number of pump 2 units
Number of UV detector 2 units
Number of Fraction collector 1 unit(2ch)
Column stand 2 sets
System control 1 set (built-in PC)
Instrument Weight About 76kg (only main body)
AC Power Source AC100-240V
Dimensions W634mm × D480mm × H660mm
CE marking
RoHS		 Obtained
Compliance

Pump

Pump
Flow Rate 1ml～100mL/min
Drive system one-cam double-plunger
Accuracy less than ±2% (1-100mL MeOH)
Precision less than ±0.3% (1-100mL MeOH)
Gradients High presser gradients : 100µl units

Fraction Collector

Fraction Collector
Number of Channel 2 channels
Rack 1 rack / channel
Fraction volume φ17.5×130mm (Standard)
Number of test tubes 80 test cubes / Rack
Number of fraction Maximum 4 Racks / Channel
Fraction mode Time mode, Volume mode, Peak mode, Volume Peak mode

UV Detector

UV Detector
Light source Deuterium Lamp
UV Wavelength range 200-400nm
Variable UV 2 wavelength detector (200～400 nm）
Optical path length (standard) 0.2mm

System Control

System Control
PC Built-in PC, 17 inch Monitor
Operation Touch panel
OS Windows 10

Option

Purif™-aios can provide following options to improve its performance

Option
Extention Unit for Column stand This unit is attached to the main body and using for column connections.
Fraction Rack φ12.0、φ16.0、φ18.0、φ25.0、φ30.0 tube
Unit for Change solvent You can choose 2 solvent automatically.
Remaining solvent sensing unit The optical fiber sensor can detect a remaining amount of solvent and stop the instrument automatically.
Air purge unit This unit can remove solvent in the column after running by pumping air.
System stand A special stand for the instruments.
High flow rate pump You can choose a high flow rate pump which can flow up to 200ml/min instead of standard one.
