| Product Code | F4010106 | |
|---|---|---|

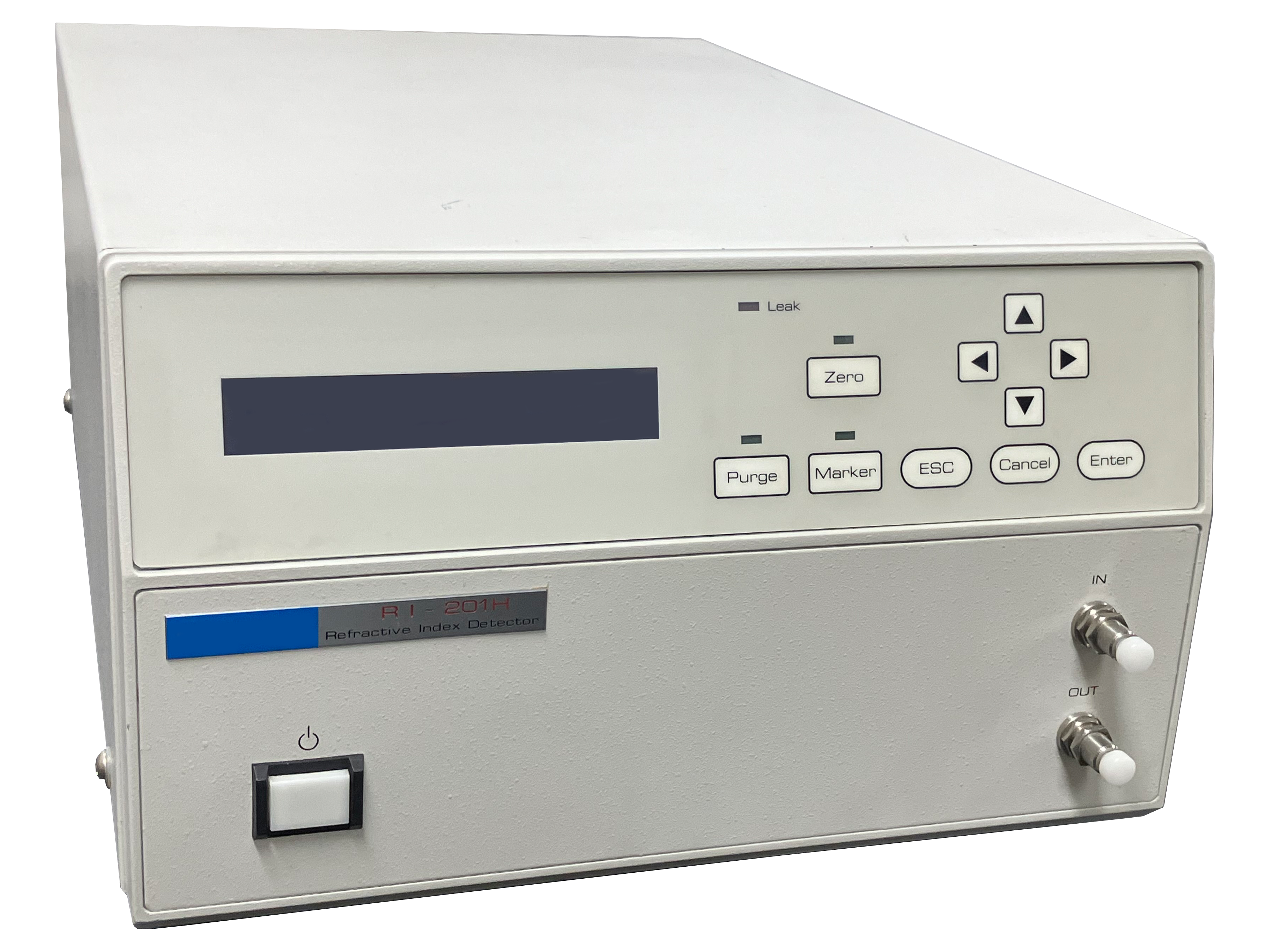

| Item | RI-201H | |
| Flow cell type | two-chamber (conventional type) | |
| Measurement method | Deflection type | |
| Refractive Index range | 1.00-1.75 | |
| Drift | 200 nRIU/h (pure water 1 mL/min, PURGE OFF) | |
| Recorder output range selection | (0.25-512) μRIU | |
| Linearity range | ≥600 μRIU | |
| Noise | ≤2.5 nRIU (pure water, response : 1.5 sec) | |
| Response | 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec | |
| Auto zero | Full auto zero, no external Input | |
| Auto zero range | All range | |
| Off-set range | 10 μRIU | |
| Off-set resolution | 50 nRIU | |
| Integrator output (Sensitivity) | (0-1) V (2 mV/μRIU, 8 mV/μRIU) | |
| Cell volume | 8 μL | |
| Flow rate | Usual | (0.2-3.0) mL/min |
| MAX | 10 mL/min (solvent ; pure water) | |
| Maximum back pressure | 50 kPa | |
| Dead volume | IN → Cell ; 60 μL | |
| Cell → OUT ; 600 μL | ||
| All (Cell → OUT) ; 670 μL | ||
| Recorder output | (0-10) mV/FS | |
| External Input (contact) | None | |
| External output (contact) | ① READY (temperature control) ② LEAKAGE ③ ERROR (ROM, RAM, PARAMETER, HOME-POSITION, OVER-HEAT, OPT.-BALANCE, INTENSITY) |
|
| Temperature control system | OFF, (30-50) ℃ (1 ℃ step), 77 ℃ temp. fuse (Double Temperature control) | |
| Communication port | USB | |
| Operator support function | None | |
| Material contact to solvent | Stainless steel 316, Teflon, Quartz Glass | |
| Power source, Power consumption | AC(100-240) V±10 % 50/60 Hz 150 VA max | |
| Dimensions, Weight | 260 W x 400 D x 150 H(mm), 12 kg | |
| Accessories | Power cable, signal code, connector tube, fuse, operation manual | |
